JOGL Reflection

反射 (Reflection) 是由於光自物體表面反彈所造成的現象，光反彈的方向受到物體表面的幾何結構影響，非常光滑的表面會產生完全相同的反射方向，就像鏡子一般；若是非常的粗糙表面則會產生散射 (Dispersion)，自光滑表面所產生的反射稱為高光反射 (Specular Reflection)，自粗糙表面所產生的反射稱為散射反射 (Diffuse Reflection)，而介於兩者之間則稱為光滑反射 (Glossy Reflection)。非導電材質的反射總是與光源顏色相同，所以所產生的反射是白色，而導電材質則會讓反射的光線帶有顏色，其顏色由入射角度與材質的化學結構決定。

 在JOGL中，反射如同在反射的表面上再繪製物體，使其產生反射的效果。可使用javax.media.opengl.GL類別的glStencilFunc()與glStencilOp()方法處理。例如：


 gl.glColorMask(false, false, false, false);
gl.glDepthMask(false);

 gl.glEnable(GL.GL_STENCIL_TEST);
gl.glStencilFunc(GL.GL_ALWAYS, 1, ~0);
gl.glStencilOp(GL.GL_REPLACE, GL.GL_REPLACE, GL.GL_REPLACE);

 drawSurface();

 gl.glColorMask(true, true, true, true);
gl.glDepthMask(true);

 gl.glStencilFunc(GL.GL_EQUAL, 1, ~0);

 gl.glStencilOp(GL.GL_KEEP, GL.GL_KEEP, GL.GL_KEEP);

 gl.glPushMatrix();
  gl.glScalef(1.0f, -1.0f, 1.0f);
  gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, g_lightPos, 0);
  drawCube();
gl.glPopMatrix();

 gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, g_lightPos, 0);
gl.glEnable(GL.GL_BLEND);
drawSurface();
gl.glDisable(GL.GL_BLEND);

 gl.glPushMatrix();
  gl.glDisable(GL.GL_TEXTURE_2D);
  gl.glDisable(GL.GL_LIGHTING);
  gl.glDisable(GL.GL_DEPTH_TEST);
  gl.glEnable(GL.GL_BLEND);
  gl.glStencilOp(GL.GL_KEEP, GL.GL_KEEP, GL.GL_INCR);
  gl.glColor4f(0.0f, 0.0f, 0.0f, 0.5f);

   gl.glMultMatrixf(g_shadowMatrix, 0);
  drawCube();

   gl.glEnable(GL.GL_TEXTURE_2D);
  gl.glEnable(GL.GL_DEPTH_TEST);
  gl.glDisable(GL.GL_BLEND);
  gl.glEnable(GL.GL_LIGHTING);
gl.glPopMatrix();
gl.glDisable(GL.GL_STENCIL_TEST);

 gl.glPushMatrix();
  drawCube();
gl.glPopMatrix();

請參考以下範例。


 // 實作GLEventListener介面之方法
// 初始化JOGL
public void init(GLAutoDrawable drawable) {
  gl = drawable.getGL();

  // Clear window with color
  gl.glClearColor(0.0f, 0.0f, 0.0f, 0.0f);

   // set the shading model
  gl.glShadeModel(GL.GL_SMOOTH);

   // set up a single white light
  float lightColor[] = { 1.0f, 1.0f, 1.0f, 1.0f };

   gl.glLightfv(GL.GL_LIGHT0, GL.GL_DIFFUSE, lightColor, 0);
  gl.glLightfv(GL.GL_LIGHT0, GL.GL_SPECULAR, lightColor, 0);

   gl.glEnable(GL.GL_LIGHTING);
  gl.glEnable(GL.GL_LIGHT0);
  gl.glEnable(GL.GL_DEPTH_TEST);

   gl.glEnable(GL.GL_TEXTURE_2D);
  gl.glTexEnvf(GL.GL_TEXTURE_ENV,
    GL.GL_TEXTURE_ENV_MODE, GL.GL_MODULATE);

   // load the textures
  cubeTex = loadTexture("opengl.jpg");
  marbleTex = loadTexture("marble.jpg");

   gl.glBlendFunc(GL.GL_SRC_ALPHA, GL.GL_ONE_MINUS_SRC_ALPHA);

   float[] plane = { 0.0f, 1.0f, 0.0f, 0.0f };

   // dot product of plane and light position
  float dot = plane[0] * g_lightPos[0] + plane[1] * g_lightPos[1] +
              plane[1] * g_lightPos[2] + plane[3] * g_lightPos[3];

   // first column
  g_shadowMatrix[0]  = dot  - g_lightPos[0] * plane[0];
  g_shadowMatrix[4]  = 0.0f - g_lightPos[0] * plane[1];
  g_shadowMatrix[8]  = 0.0f - g_lightPos[0] * plane[2];
  g_shadowMatrix[12] = 0.0f - g_lightPos[0] * plane[3];

   // second column
  g_shadowMatrix[1]  = 0.0f - g_lightPos[1] * plane[0];
  g_shadowMatrix[5]  =  dot - g_lightPos[1] * plane[1];
  g_shadowMatrix[9]  = 0.0f - g_lightPos[1] * plane[2];
  g_shadowMatrix[13] = 0.0f - g_lightPos[1] * plane[3];

   // third column
  g_shadowMatrix[2]  = 0.0f - g_lightPos[2] * plane[0];
  g_shadowMatrix[6]  = 0.0f - g_lightPos[2] * plane[1];
  g_shadowMatrix[10] =  dot - g_lightPos[2] * plane[2];
  g_shadowMatrix[14] = 0.0f - g_lightPos[2] * plane[3];

   // fourth column
  g_shadowMatrix[3]  = 0.0f - g_lightPos[3] * plane[0];
  g_shadowMatrix[7]  = 0.0f - g_lightPos[3] * plane[1];
  g_shadowMatrix[11] = 0.0f - g_lightPos[3] * plane[2];
  g_shadowMatrix[15] =  dot - g_lightPos[3] * plane[3];
}

 // 載入圖像以作為貼圖之用
private Texture loadTexture(String filename) {
  com.sun.opengl.util.texture.Texture tex = null;

   // Get current classloader
  ClassLoader cl = this.getClass().getClassLoader();

  try {
    // 載入圖像檔案
    tex = com.sun.opengl.util.texture.TextureIO.newTexture(
      cl.getResourceAsStream("images/" + filename),
      false, TextureIO.JPG);
    // 設定Texture的參數
    tex.setTexParameteri(GL.GL_TEXTURE_WRAP_S, GL.GL_REPEAT);
    tex.setTexParameteri(GL.GL_TEXTURE_WRAP_T, GL.GL_REPEAT);
    tex.setTexParameteri(GL.GL_TEXTURE_MAG_FILTER, GL.GL_LINEAR);
    tex.setTexParameteri(GL.GL_TEXTURE_MIN_FILTER, GL.GL_LINEAR);
  }
  catch(Exception e) {
    System.out.println("Error loading texture " + filename);
  }

   return tex;
}

 // 繪製圖形
public void display(GLAutoDrawable drawable) {
  gl = drawable.getGL();

   gl.glLoadIdentity();
  glu.gluLookAt(0.0, 3.0, 10.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

   // Clear
  gl.glClear(GL.GL_COLOR_BUFFER_BIT |
    GL.GL_DEPTH_BUFFER_BIT | GL.GL_STENCIL_BUFFER_BIT);

   // rotate the scene
  angle += 3.0;
  gl.glRotated(-angle/8.0, 0.0, 1.0, 0.0);
  gl.glRotated(10.0 * Math.sin(angle/45.0), 1.0, 0.0, 0.0);

   gl.glColorMask(false, false, false, false);
  gl.glDepthMask(false);

   gl.glEnable(GL.GL_STENCIL_TEST);
  gl.glStencilFunc(GL.GL_ALWAYS, 1, ~0);
  gl.glStencilOp(GL.GL_REPLACE, GL.GL_REPLACE, GL.GL_REPLACE);

   drawSurface();

   gl.glColorMask(true, true, true, true);
  gl.glDepthMask(true);

  gl.glStencilFunc(GL.GL_EQUAL, 1, ~0);

  gl.glStencilOp(GL.GL_KEEP, GL.GL_KEEP, GL.GL_KEEP);

   gl.glPushMatrix();
    gl.glScalef(1.0f, -1.0f, 1.0f);
    gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, g_lightPos, 0);
    drawCube();
  gl.glPopMatrix();

   gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, g_lightPos, 0);
  gl.glEnable(GL.GL_BLEND);
  drawSurface();
  gl.glDisable(GL.GL_BLEND);

   gl.glPushMatrix();
    gl.glDisable(GL.GL_TEXTURE_2D);
    gl.glDisable(GL.GL_LIGHTING);
    gl.glDisable(GL.GL_DEPTH_TEST);
    gl.glEnable(GL.GL_BLEND);
    gl.glStencilOp(GL.GL_KEEP, GL.GL_KEEP, GL.GL_INCR);
    gl.glColor4f(0.0f, 0.0f, 0.0f, 0.5f);

    gl.glMultMatrixf(g_shadowMatrix, 0);
    drawCube();

    gl.glEnable(GL.GL_TEXTURE_2D);
    gl.glEnable(GL.GL_DEPTH_TEST);
    gl.glDisable(GL.GL_BLEND);
    gl.glEnable(GL.GL_LIGHTING);
  gl.glPopMatrix();
  gl.glDisable(GL.GL_STENCIL_TEST);

   gl.glPushMatrix();
    drawCube();
  gl.glPopMatrix();
}

private void drawSurface(){
  float[] surfaceColor = { 1.0f, 1.0f, 1.0f, 0.6f };
  gl.glMaterialfv(GL.GL_FRONT, GL.GL_SPECULAR, surfaceColor, 0);
  gl.glMaterialfv(GL.GL_FRONT, GL.GL_AMBIENT_AND_DIFFUSE,
    surfaceColor, 0);
  gl.glMaterialf(GL.GL_FRONT, GL.GL_SHININESS, 200.0f);

   // 啟用貼圖
  cubeTex.enable();
  marbleTex.enable();
  // 繫結貼圖
  marbleTex.bind();

   gl.glBegin(GL.GL_QUADS);
  gl.glNormal3f(0.0f, 1.0f, 0.0f);

   float x = -5.0f;
  float z = -5.0f;

   for (int i = 0; i < 10; i++, x += 1.0f) {
    for (int j = 0; j < 10; j++, z += 1.0f) {
      gl.glTexCoord2f(0.0f, 0.0f);
      gl.glVertex3f(x, 0.0f, z);
      gl.glTexCoord2f(1.0f, 0.0f);
      gl.glVertex3f(x + 1.0f, 0.0f, z);
      gl.glTexCoord2f(1.0f, 1.0f);
      gl.glVertex3f(x + 1.0f, 0.0f, z + 1.0f);
      gl.glTexCoord2f(0.0f, 1.0f);
      gl.glVertex3f(x, 0.0f, z + 1.0f);
    }
    z = -5.0f;
  }

   gl.glEnd();

   marbleTex.disable();
}

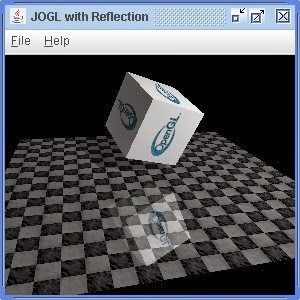

【執行結果】


 【參考資料】

 [1] Java Platform, Standard Edition 7, API Specification.
[2] JOGL.
[3] 黃嘉輝，完全探索Java遊戲程式設計，上奇資訊。
