JavaFX 3D - Rhombicuboctahedron

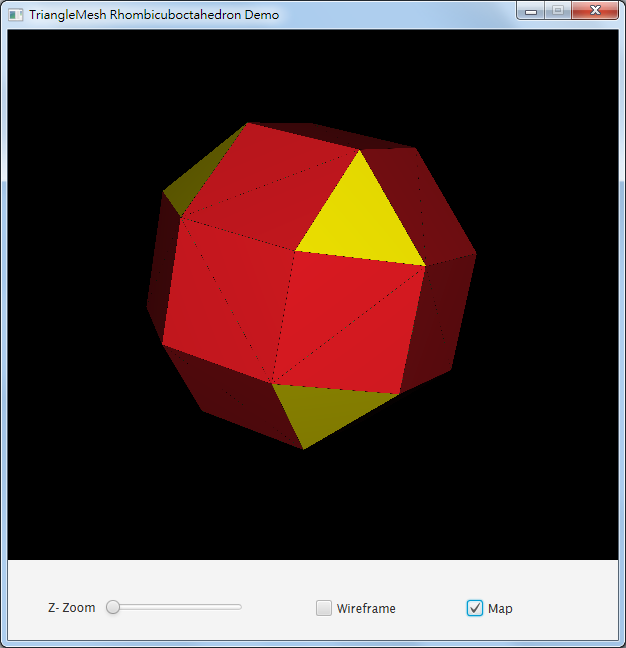

以下是以JavaFX 8的TriangleMesh類別建構之Rhombicuboctahedron (小斜方截半立方體)，屬於Archimedean Solid (阿基米德立體)。

float C0 = length * (float) (Math.sqrt(2.0)+1.0) / 2.0f;
float C1 = length * 0.5f;

// 建立TriangleMesh
TriangleMesh trianglemesh = new TriangleMesh();

// 設定頂點座標
trianglemesh.getPoints().addAll(
   C1,  C1,  C0,
   C1,  C1, -C0,
   C1, -C1,  C0,
   C1, -C1, -C0,
  -C1,  C1,  C0,
  -C1,  C1, -C0,
  -C1, -C1,  C0,
  -C1, -C1, -C0,
   C0,  C1,  C1,
   C0,  C1, -C1,
   C0, -C1,  C1,
   C0, -C1, -C1,
  -C0,  C1,  C1,
  -C0,  C1, -C1,
  -C0, -C1,  C1,
  -C0, -C1, -C1,
   C1,  C0,  C1,
   C1,  C0, -C1,
   C1, -C0,  C1,
   C1, -C0, -C1,
  -C1,  C0,  C1,
  -C1,  C0, -C1,
  -C1, -C0,  C1,
  -C1, -C0, -C1
);

// 設定貼圖座標
trianglemesh.getTexCoords().addAll(
  0.50f, 1.0f,
  0.75f, (float) (1.0-Math.sqrt(3.0)/4.0f),
  0.25f, (float) (1.0-Math.sqrt(3.0)/4.0f),
  1.00f, 1.0f,
  0.50f, (float) (1.0-Math.sqrt(3.0)/2.0f),
  0.00f, 1.0f
);

// 設定各三角形的面
trianglemesh.getFaces().addAll(
   0, 2,  8, 1, 16, 4,
   1, 2, 17, 1,  9, 4,
   2, 2, 18, 1, 10, 4,
   3, 2, 11, 1, 19, 4,
   4, 2, 20, 1, 12, 4,
   5, 2, 13, 1, 21, 4,
   6, 2, 14, 1, 22, 4,
   7, 2, 23, 1, 15, 4,
   0, 0, 16, 1, 20, 2,
   0, 0, 20, 1,  4, 2,
   0, 0,  4, 1,  6, 2,
   0, 0,  6, 1,  2, 2,
   0, 0,  2, 1, 10, 2,
   0, 0, 10, 1,  8, 2,
   7, 0, 15, 1, 13, 2,
   7, 0, 13, 1,  5, 2,
   7, 0,  5, 1,  1, 2,
   7, 0,  1, 1,  3, 2,
   7, 0,  3, 1, 19, 2,
   7, 0, 19, 1, 23, 2,
  11, 0,  3, 1,  1, 2,
  11, 0,  1, 1,  9, 2,
  11, 0,  9, 1,  8, 2,
  11, 0,  8, 1, 10, 2,
  11, 0, 10, 1, 18, 2,
  11, 0, 18, 1, 19, 2,
  12, 0, 20, 1, 21, 2,
  12, 0, 21, 1, 13, 2,
  12, 0, 13, 1, 15, 2,
  12, 0, 15, 1, 14, 2,
  12, 0, 14, 1,  6, 2,
  12, 0,  6, 1,  4, 2,
  17, 0,  1, 1,  5, 2,
  17, 0,  5, 1, 21, 2,
  17, 0, 21, 1, 20, 2,
  17, 0, 20, 1, 16, 2,
  17, 0, 16, 1,  8, 2,
  17, 0,  8, 1,  9, 2,
  22, 0, 14, 1, 15, 2,
  22, 0, 15, 1, 23, 2,
  22, 0, 23, 1, 19, 2,
  22, 0, 19, 1, 18, 2,
  22, 0, 18, 1,  2, 2,
  22, 0,  2, 1,  6, 2
);

// 設定各面的平滑參數
trianglemesh.getFaceSmoothingGroups().addAll(
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0,
  0, 0, 0, 0
);

// 建立MeshView
MeshView meshview;

meshview = new MeshView(createMesh(100));
...
